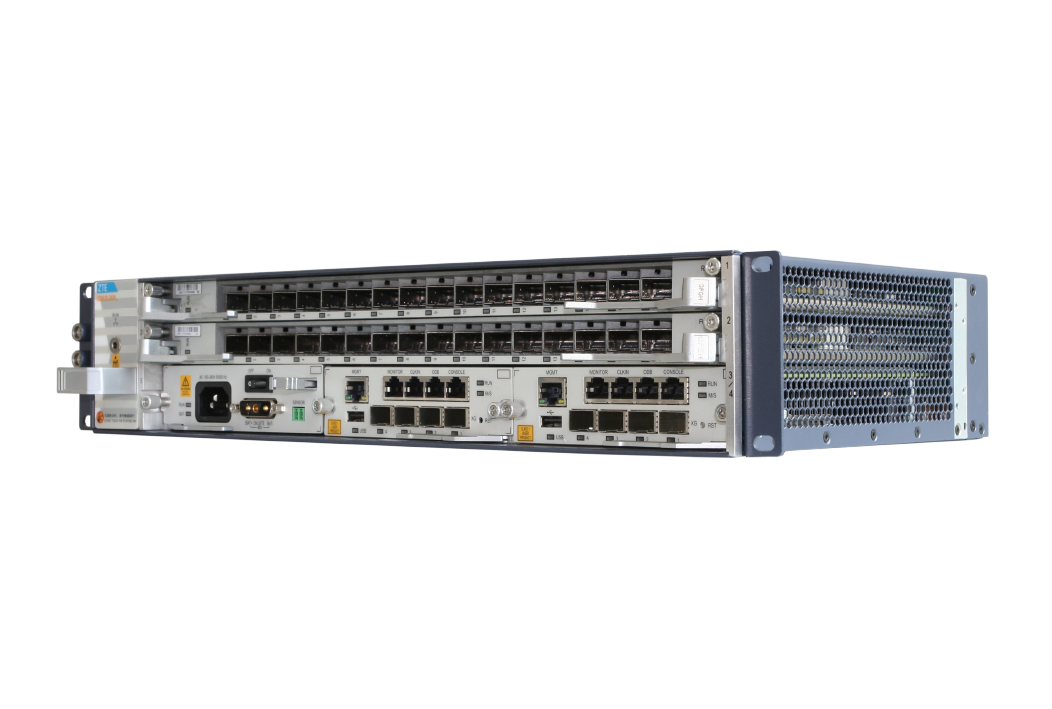

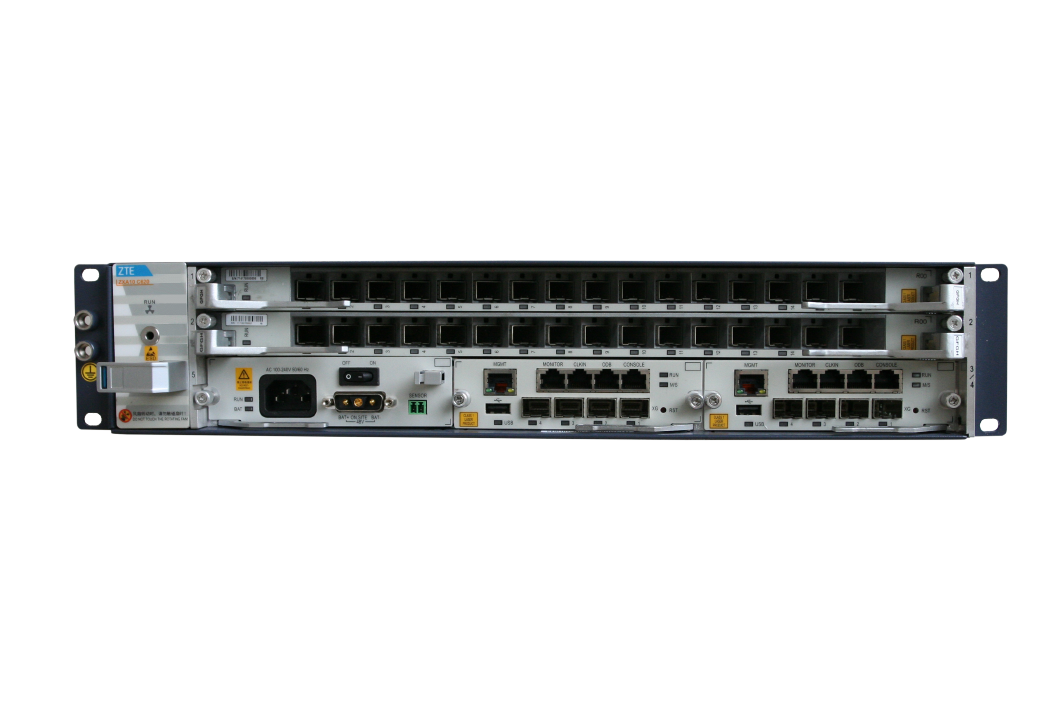

    Small-Capacity PON OLT — ZXA10 C620

    The ZXA10 C620 is a 2U high PON OLT based on the TITAN platform. It has a compact industrial design and uses a state-of-the-art fully-distributed and programmable router architecture to support 4K/8K/VR, FMC, and SDN/NFV/virtualization in a wide range of scenarios.

    Product Highlights

    2U-high, supports up to 32 PON ports
    · Supports GPON, XG-PON, XGS-PON and Combo PON, Any-PON
    · Supports up to 32 PON ports for 2,048 FTTH users
    Industry's first 16-port 10G PON/Combo PON
    · 5-in-1 chip, 16 ports per chip, industry's highest density
    · 31.8% less power consumption than the CoC v8

    Product Parameters

    Dimensions (H x W x D)
    88.1 x 482.6 x 283.5 mm
    Access Features
    32 x GPON, 10G PON, Any-PON or Combo PON ports
    Uplink Interface Card
    4 x 10GE/GE uplink per card
    Subscriber Card Density
    16 x GPON/XG-PON/XGS-PON/Combo PON/Any-PON ports per card
    16 x 10GE P2P per card
    24/48 x GE P2P per card
    Environmental Conditions
    Operating temperature: -40℃ ~ +65℃
    Operating humidity: 5% - 95%, non-condensing
    Power Supply
    DC operating voltage: -48 V (± 20%), or -60 V (± 20%)
    AC operating voltage: 100 V - 240 V
