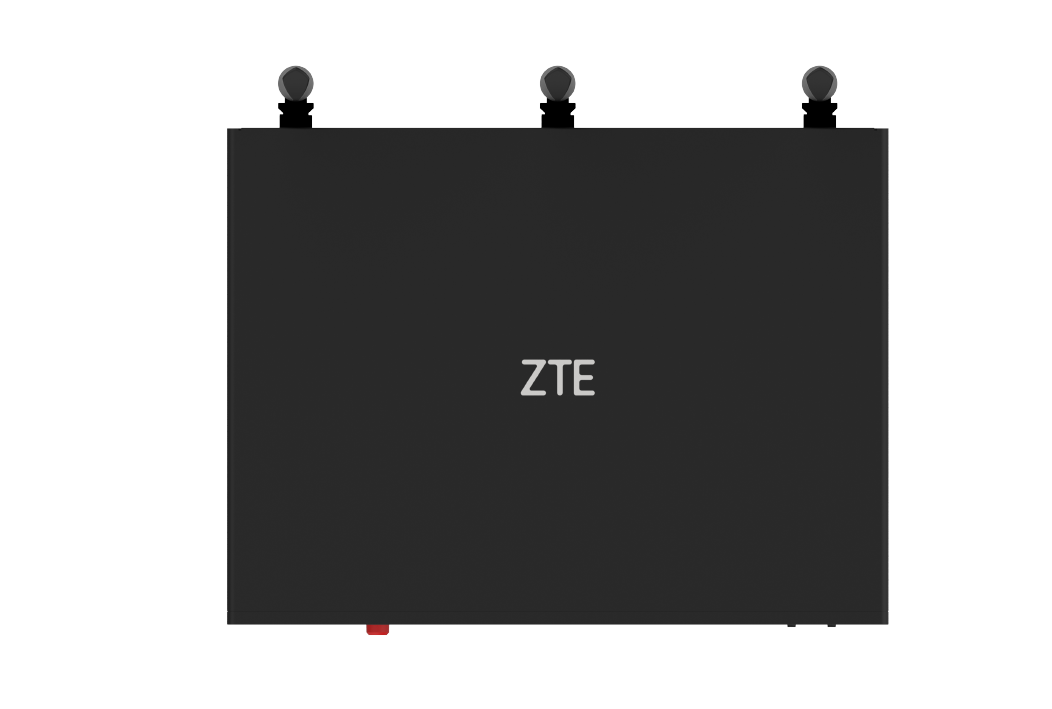

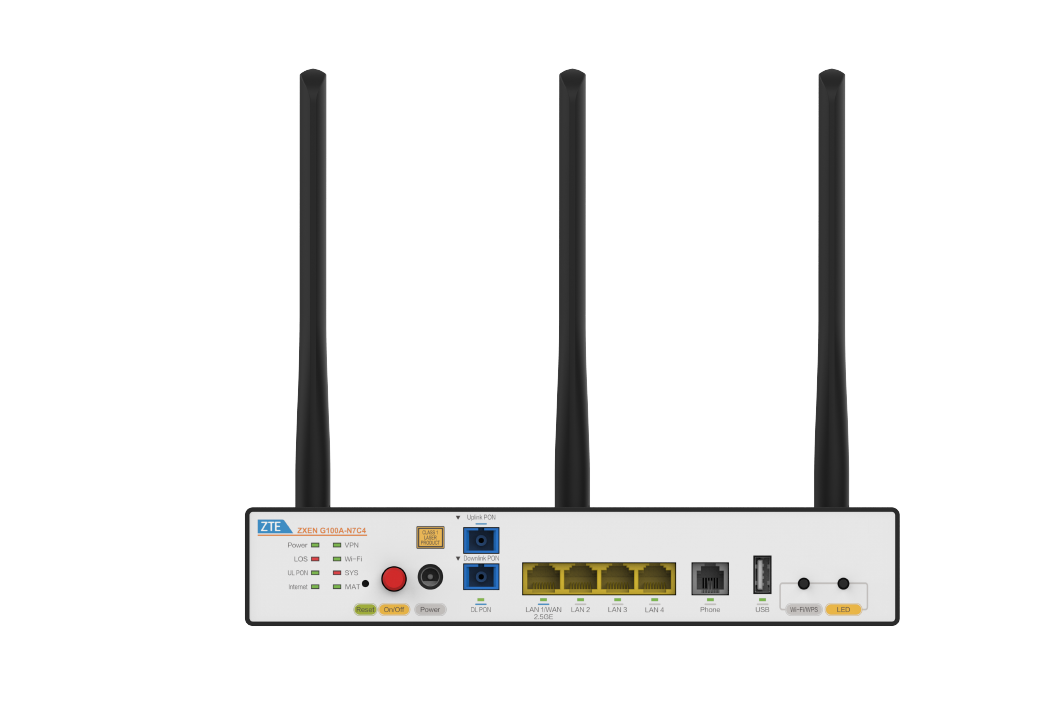

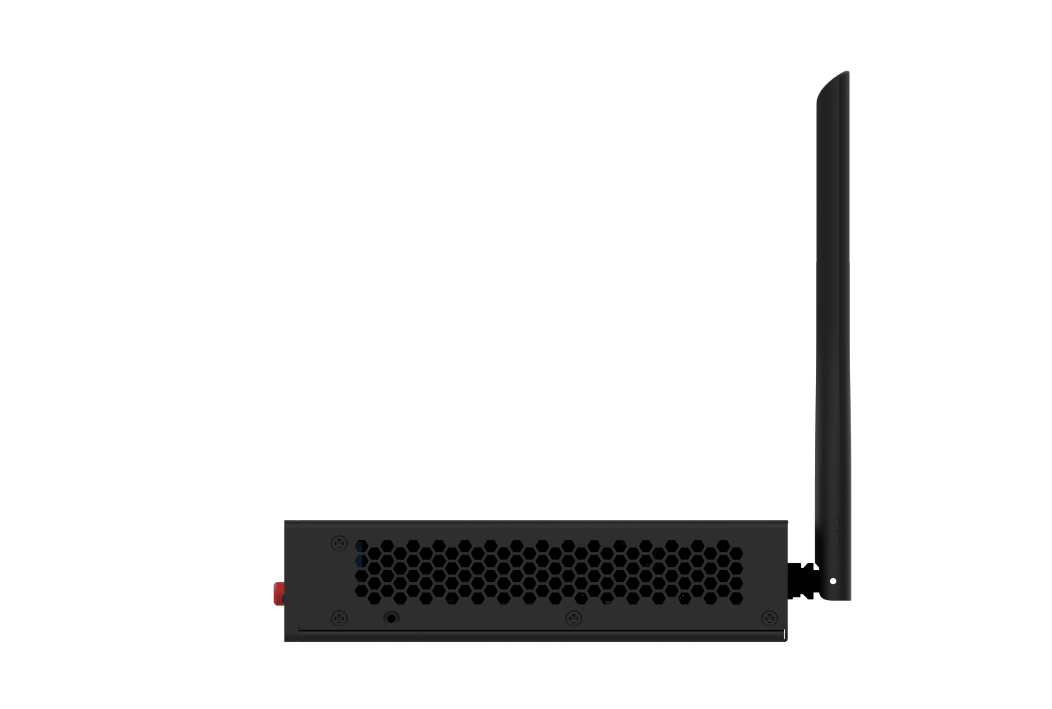

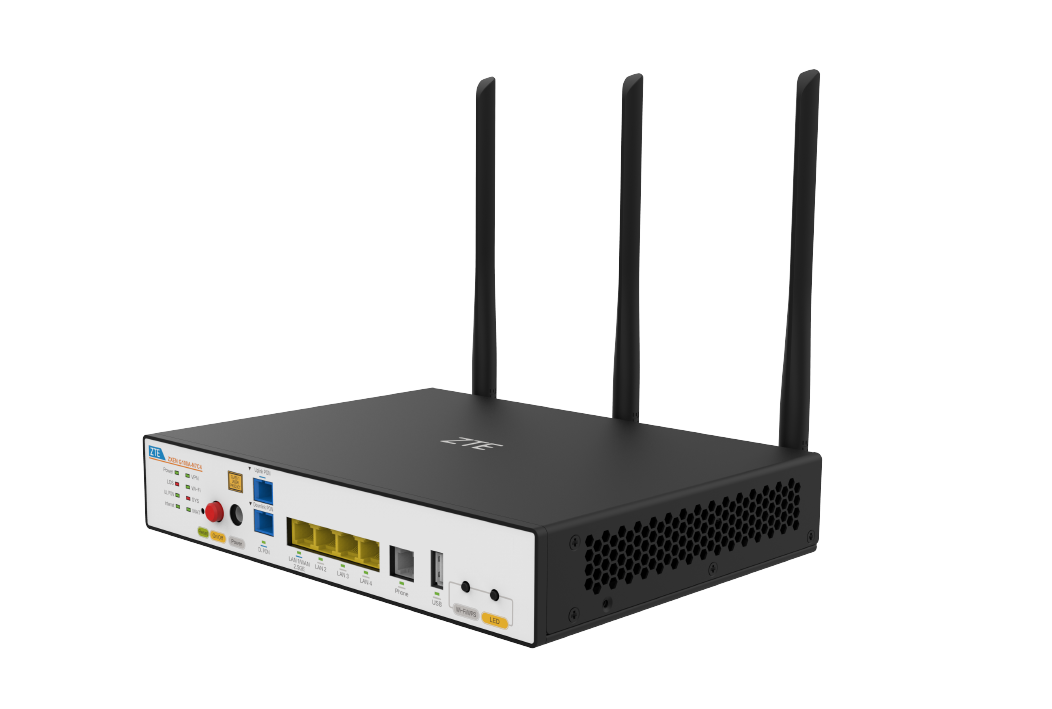

    FTTR-B Combo PON Main ONT — ZXEN G100A-N7C4

    The ZXEN G100A-N7C4 is an all-optical networking product specially designed for the FTTR-B scenario. It works as the "Three-Network Central Controller" in support of optical + wireless + voice services. It is embedded with a mini OLT, a Wi-Fi controller and a mini PBX module to carry a variety of services.

    Product Highlights

    Industry's 1st ASIC FTTR chip
    · Reduces power consumption by 70% and transmission latency by 75%
    "Three-Network Central Controller"
    · Works as the ""Three-Network Central Controller"" in support of optical + wireless + voice services, and embedded with a mini OLT, a Wi-Fi controller and a mini PBX to carry a variety of services.
    Wider Access, Massive STA Connections
    · Up to 1:128 splitting ratio for wider coverage
    · Up to 1000 STAs connected to the network

    Product Parameters

    WAN
    XGS-PON+GPON Combo
    Dimensions
    240 x 180 x 43.6 mm
    LAN
    GPON
    1 x 2.5 GE RJ-45 port (LAN/WAN)
    3 x GE RJ-45 ports
    1 x FXS RJ-11 port
    1 x USB 2.0
    2 x 2 802.11b/g/n/ax @ 2.4 GHz
    2 x 2 802.11a/n/ac/ax 160 MHz @ 5 GHz
    Key Functions
    Up to 1:128 splitting ratio, 1000 STAs concurrent
    Mini PBX for room ONT
    VPN: L2TP/PPTP/IPsec
    Public Wi-Fi/Mesh Wi-Fi
    Portal/802.1x authentication
    Smart QoS
    Cloud remote management (SCP)
    ZLife app management
